Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Non NAS vehicles

  1. WARNING: Make sure the driver airbag wiring harness is installed to the retaining clips and located as highlighted in the illustration.
    CAUTION: Take extra care not to damage the wiring harnesses.

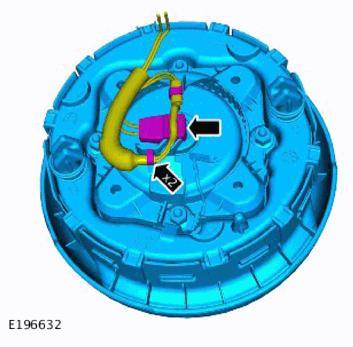

    G11312481
    • Connect the electrical connector.
    • Install the driver airbag harness to the driver airbag.

    NAS vehicles

  2. WARNING: Make sure the driver airbag wiring harness is installed to the retaining clips and located as highlighted in the illustration.
    CAUTION: Take extra care not to damage the wiring harnesses.

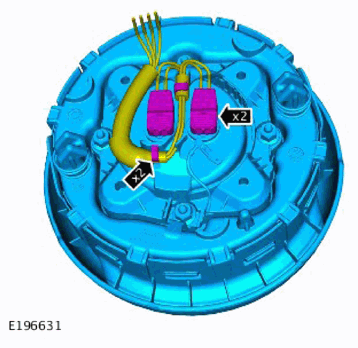

    G11312482
    • Connect the electrical connector.
    • Install the driver airbag harness to the driver airbag.

    All vehicles

  3. WARNING: Driver air bag module installation can be confirmed by hearing 2 audible clicks, 1 for each clip.
    CAUTION: Take extra care not to damage the wiring harnesses.

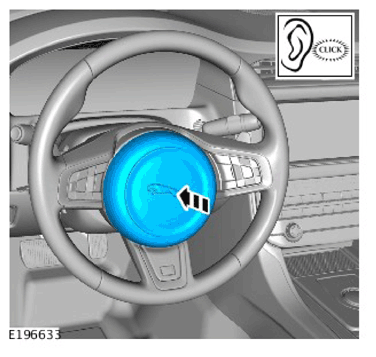

    G11312483

    Install the driver airbag.

  4. Connect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  5. If a new component has been installed, configure using Land Rover approved diagnostic equipment.

    General Equipment:  Jaguar diagnostic equipment.
