Passenger Airbag Deactivation Indicator
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

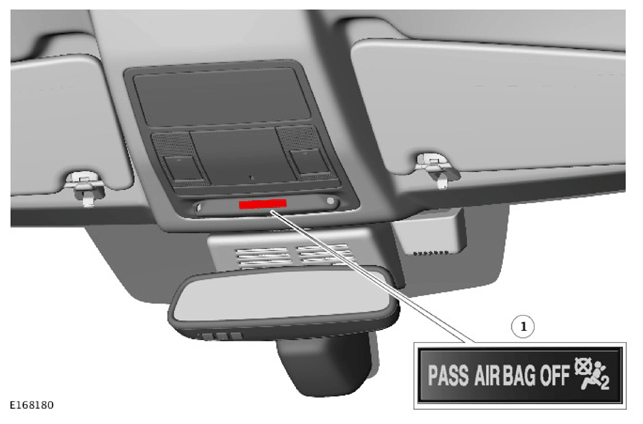

| ITEM | DESCRIPTION |
|---|---|
| 1 | Passenger airbag deactivation warning indicator |
The PAD (Passenger Airbag Deactivation) warning indicator is installed in the front overhead console. When appropriate, the indicator illuminates to advise front seat occupants that the passenger airbag is disabled. Operation of the indicator is controlled by the RCM connecting/disconnecting a ground signal from the indicator. The RCM illuminates the indicator when:
- There is a fault with the passenger airbag firing circuits.
- The passenger airbag is disabled in the IC set-up menu and the front passenger seat is occupied.
