Driver Airbag

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
G11312446

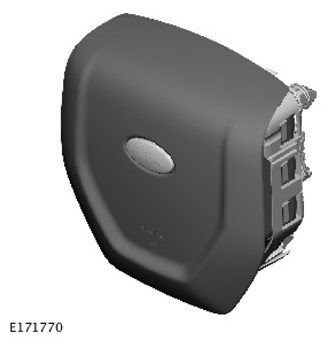

The driver airbag forms the center pad of the steering wheel. It provides head and chest protection for the drive when deployed during a front or rear impact.

Lines, molded into the inner surface of the airbag cover, provide weak points that split open in a controlled manner when the airbag deploys. The driver airbag has a two stage inflator, with separate electrical connectors on each stage.
