Control Diagram
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

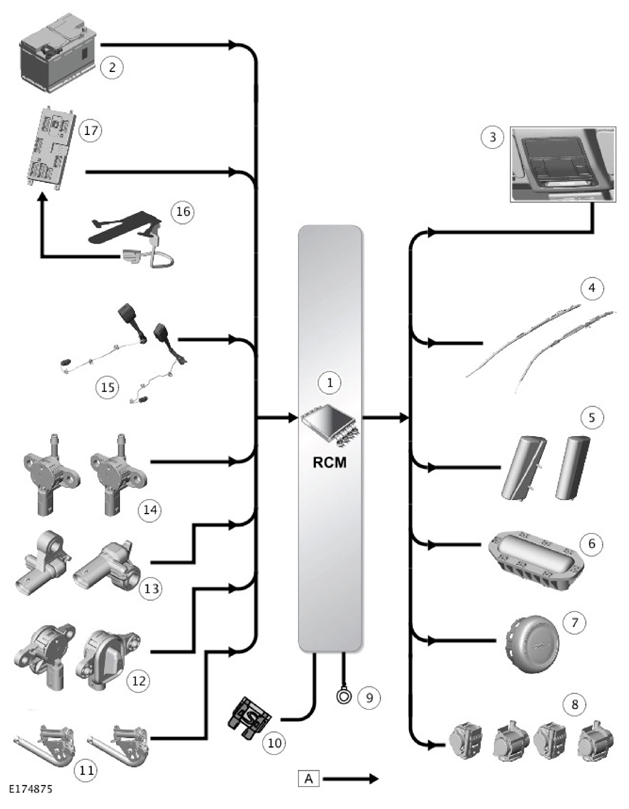

| ITEM | DESCRIPTION |
|---|---|
| 1 | Restraints Control Module (RCM) |
| 2 | Battery |
| 3 | Passenger airbag deactivation indicator |
| 4 | Side air curtains |
| 5 | Side airbags |
| 6 | Passenger airbag |
| 7 | Driver airbag |
| 8 | Seatbelt retractor with pretensioner |
| 9 | Ground |
| 10 | Power supply |
| 11 | Pretensioner |
| 12 | Front impact sensor |
| 13 | Side impact sensor |
| 14 | Impact pressure sensor |
| 15 | Seatbelt buckle |
| 16 | Occupant detection sensor |
| 17 | Body Control Module/Gateway Module (BCM/GWM) |
