General Procedures

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the Feeler Gauge, measure the piston ring gap.
    CAUTION: Do not mix up the piston rings. Install the piston rings in the same position and location.

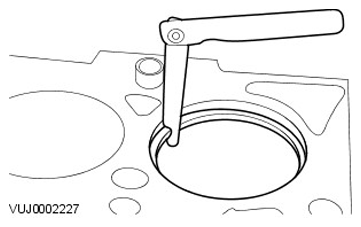

    G11284739
    • The values given in the specification refer to a gauge ring used during production.
