General Procedures

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the piston pin diameter.
    NOTE: The piston and piston pin are a matched pair. Do not mix up the components.

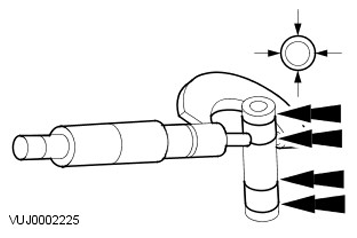

    G11284737
    • Measure the diameter in two directions.
    • If the values are not to specification, install a new piston and a new piston pin.
