General Procedures

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carry out a visual inspection.
    CAUTION: Do not use any aggressive cleaning fluid or a wire brush to clean the piston.

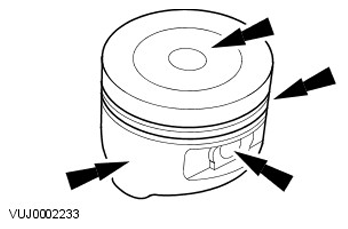

    G11284736
    • Clean the piston skirt, pin bush, ring grooves and crown and check for wear or cracks.
    • If there are signs of wear on the piston skirt, check whether the connecting rod is twisted or bent.
