Special Tool(S)

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
G11308881
 303-979
Measuring Bridge, Piston Protusion
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

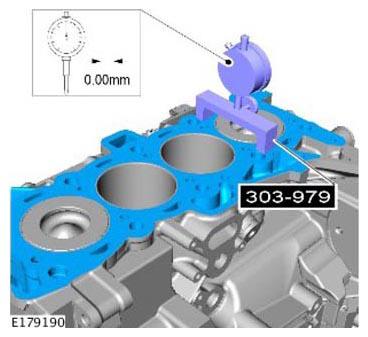

  1. Zero the gauge on the cylinder block machined face.
    CAUTION: Make sure that the surface is clean and free of foreign material.
    G11308882

    Special Tool(s):  303-979

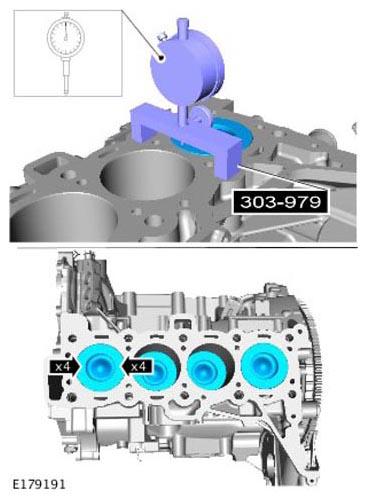

  2. Take 2 measurements on each piston crown.
    CAUTION: Make sure that the surface is clean and free of foreign material.
    NOTE: Note the dial gauge readings.
    G11308883

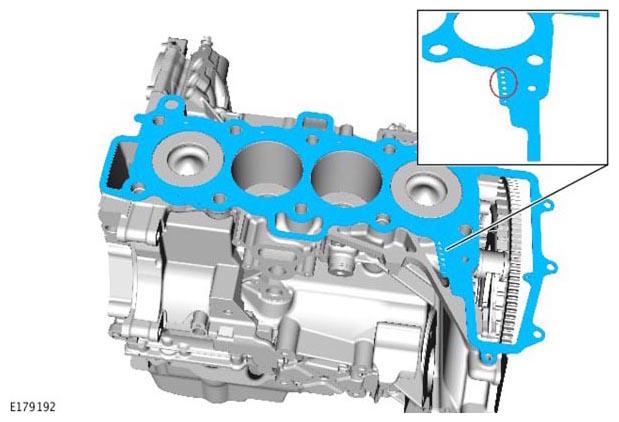

  3. Use the highest piston protrusion measurement, to select the correct thickness cylinder head gasket.
    G11308884

    Refer to: Specifications .
