General Procedures

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

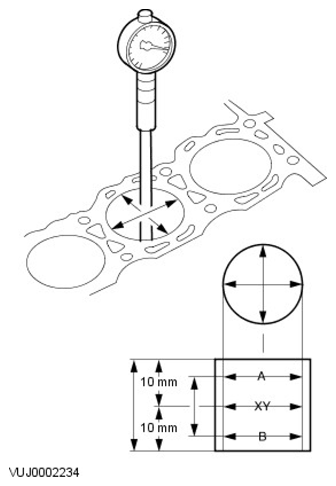

  1. Measure the cylinder bore with an internal micrometer.
    NOTE: The main bearing caps or lower crankcase must be in place and tightened to the specified torque; however, the bearing shells should not be installed.
    G11308865
    • Carry out the measurements in different directions and at different heights to determine if there is any out-of-roundness or tapering.
    • If the measurement is out of the specified range, hone out the cylinder block or install a new block.
