General Procedures

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the camshaft is to specification.

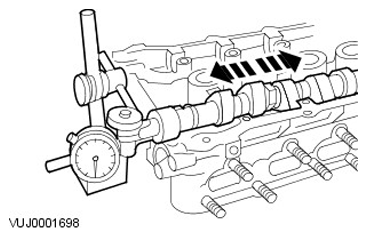

Using the special tool, measure the end play.

Slide the camshaft in both directions. Read and note the maximum and minimum values on the dial indicator gauge.
End play = maximum value minus minimum value.
If the measurement is out of specification, install new components.
