General Procedures

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

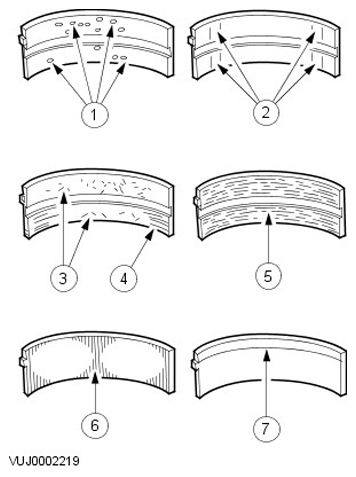

  1. G11284726

Inspect bearings for the following defects.

  1. Cratering - fatigue failure
  2. Spot polishing - incorrect seating.
  3. Imbedded dirt engine oil.
  4. Scratching - dirty engine oil.
  5. Base exposed - poor lubrication.
  6. Both edges worn - journal damaged.
  7. One edge worn - journal tapered or bearing not seated.
