Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specifications, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post ramp.

    Refer to: Lifting .

  2. Remove the intake air resonator.

    Refer to: Intake Air Resonator .

  3. G11308127
    • Remove the breather pipe.
    • Remove and discard the O-ring seals.

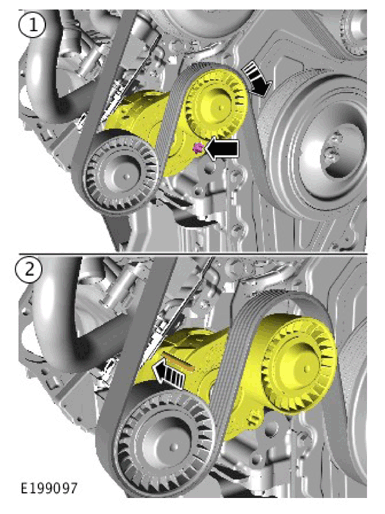

  4. Insert a suitable tool as illustrated, to prevent tension being applied to the accessory belt.
    G11306804

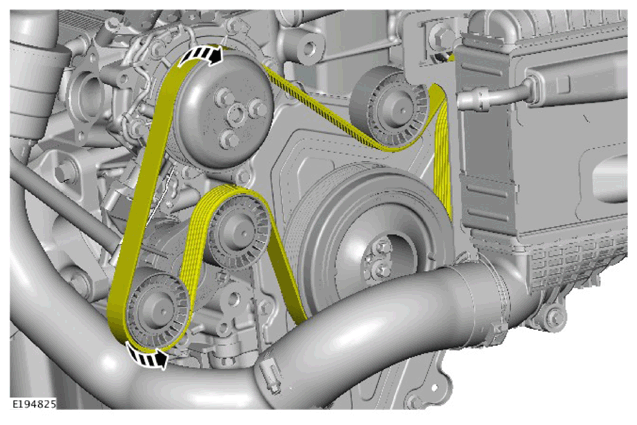

  5. Position the accessory drive belt to one side to protect against oil contamination.
    G11327084

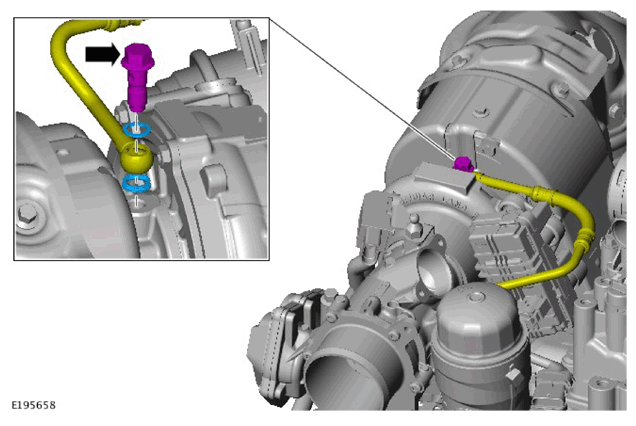

  6. WARNING: Be prepared to collect escaping oil.
    G11327085
    • Release the turbocharger oil supply tube.
    • Remove and discard the banjo bolt and sealing washers.

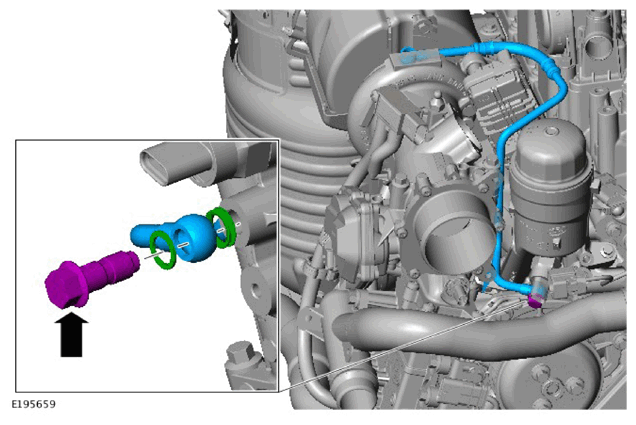

  7. WARNING: Be prepared to collect escaping oil.
    G11327086
    • Remove the turbocharger oil supply tube.
    • Remove and discard the banjo bolt and sealing washers.
