Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Diesel Exhaust Fluid Tank Drain and Refill .
  3. Access through the rear left wheel arch.
    NOTE: Right illustration shown, left is similar.
    G11308081
  4. Refer to: Diesel Exhaust Fluid Filler Assembly .
  5. The quick connector is pushed in an axial direction onto the SAE spigot, until you hear a audible click.
    CAUTION: Make sure that all disconnected electrical connectors and sockets are sealed.
    NOTE: Disconnect the components in the sequence shown.
    G11308112

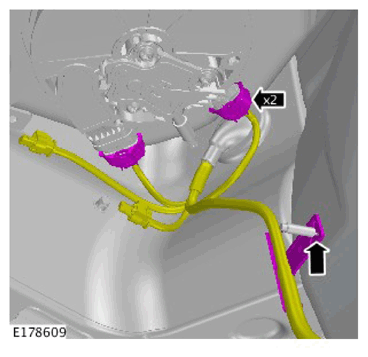

  6. G11308113
  7. G11308114

    Torque: 7 Nm

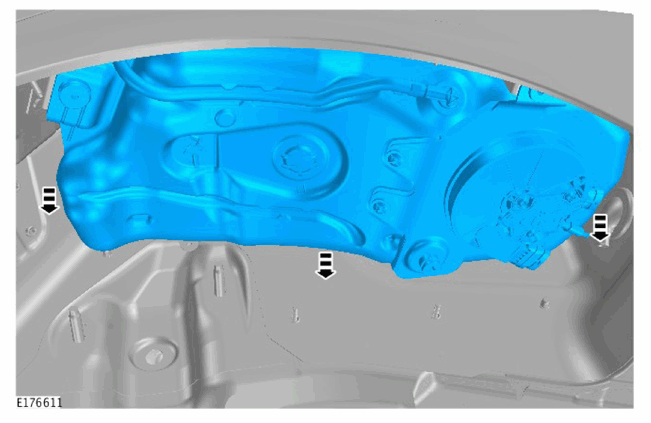

  8. G11308115
