Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  4. WARNING: Be prepared to collect escaping fluid.
    CAUTION: Make sure that all disconnected electrical connectors and sockets are sealed.

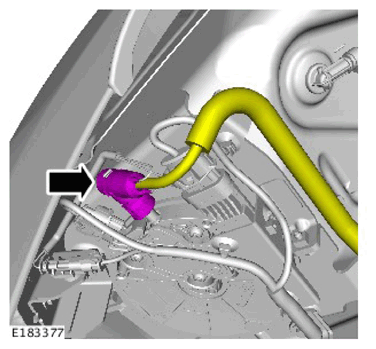

    G11308116

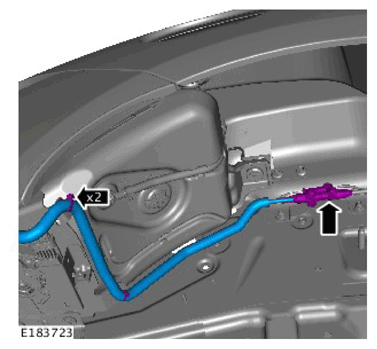

  5. G11308117

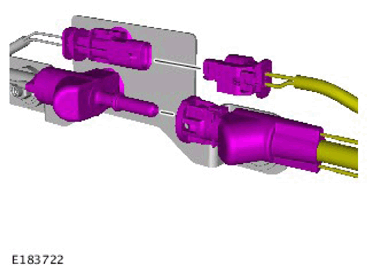

  6. G11308118

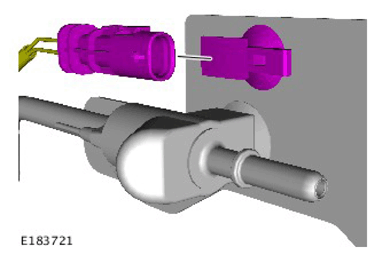

  7. G11308119

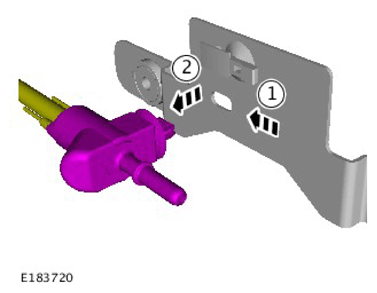

  8. G11308120

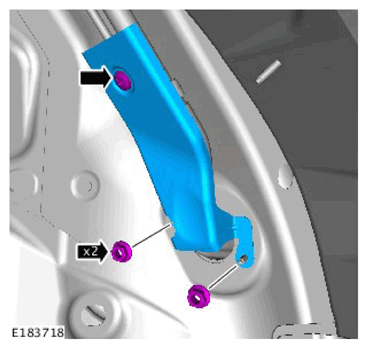

  9. G11308121

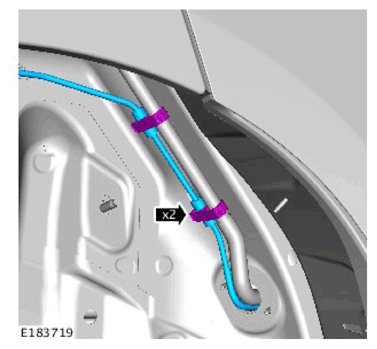

  10. G11308122

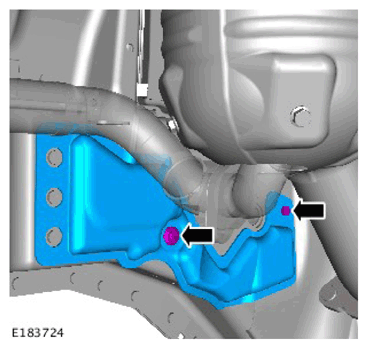

  11. G11308123
  12. G11308124
  13. G11308125
