Removal And Installation: Notes
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

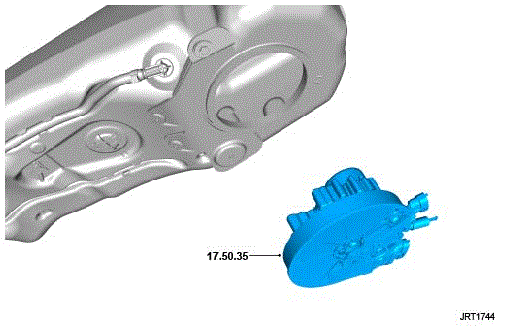

| 17.50.35 |
DIESEL EXHAUST FLUID INJECTION PUMP - RENEW |
ALL DERIVATIVES |
0.8 |
| STEP |
PART NAME |
QUANTITY |
| Installation Step 2 |
Sleeve and isolator assemblies |
1 |
| Installation Step 4 |
Diesel exhaust fluid injection pump bolts |
1 |
