Exhaust Gas RECIRCULATION (EGR) EU5 And EU6 Market Vehicles
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

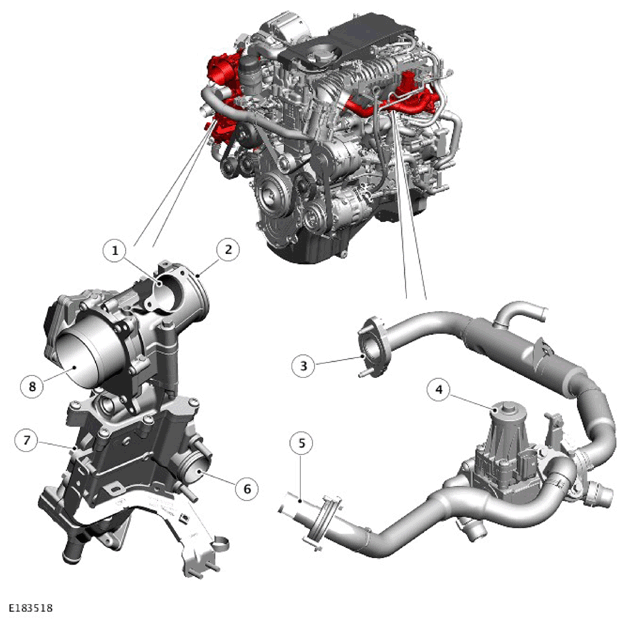

| ITEM | DESCRIPTION |
|---|---|
| 1 | Breather pipe inlet from engine vent module |
| 2 | Turbocharger attachment |
| 3 | High Pressure (HP) Exhaust Gas Recirculation (EGR) cooler tube from exhaust manifold (Note: Cooler tube only connected to engine cooling system on EU6 vehicles) |
| 4 | High Pressure (HP) Exhaust Gas Recirculation (EGR) valve and actuator |
| 5 | High Pressure (HP) Exhaust Gas Recirculation (EGR) outlet to intake manifold |
| 6 | Engine coolant connection with cylinder block |
| 7 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) cooler |
| 8 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) Valve |
