Crankcase Emissions
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

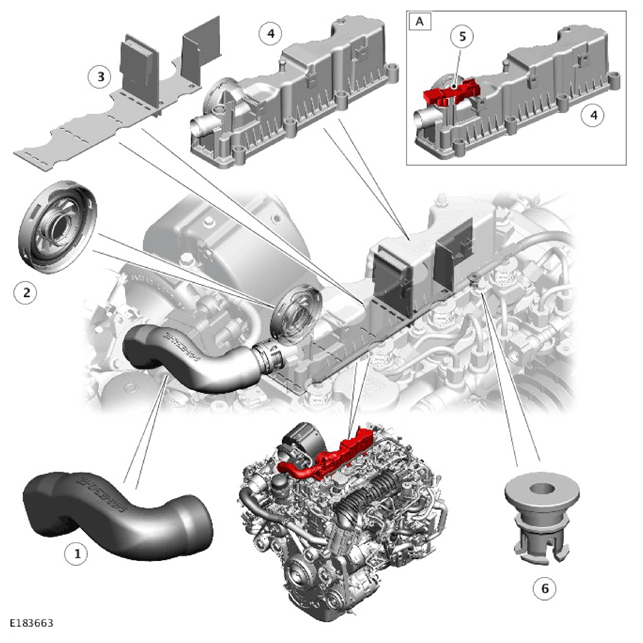

| ITEM |
DESCRIPTION |
| A |
North American Specification (NAS) engine vent module |
| 1 |
Breather Pipe |
| 2 |
Positive Crankcase Ventilation Valve |
| 3 |
Positive Crankcase Ventilation Baffle |
| 4 |
Engine vent module (positive crankcase ventilation) |
| 5 |
Crankcase vent pressure sensor (NAS only) |
| 6 |
Oil Drain Valve |
