Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal and installation of the bush requires the use of a press.

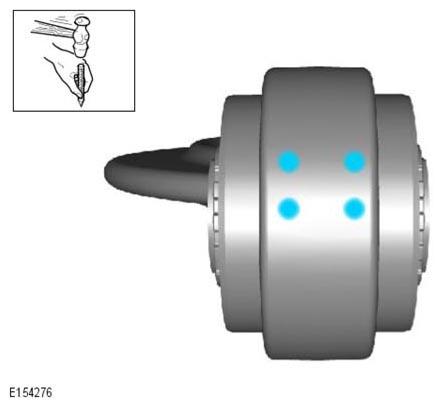

Visually inspect the lower arm for signs of a center punch mark. If four marks are located on the lower arm in the area illustrated, install a new front lower arm.
Only continue with the procedure below if there is less than four marks on the lower front arm.
Refer to: Front Lower Arm .

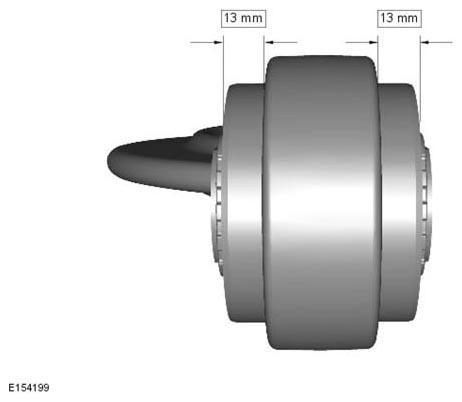

Measure and note the value both sides of the bush as illustrated prior to removal.
CAUTION: Note the orientation of the bush prior to removal.

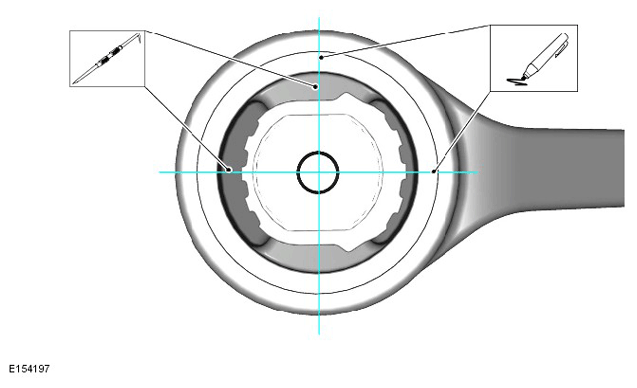

Using suitable marking tools, mark the bush and lower arm prior to removal.

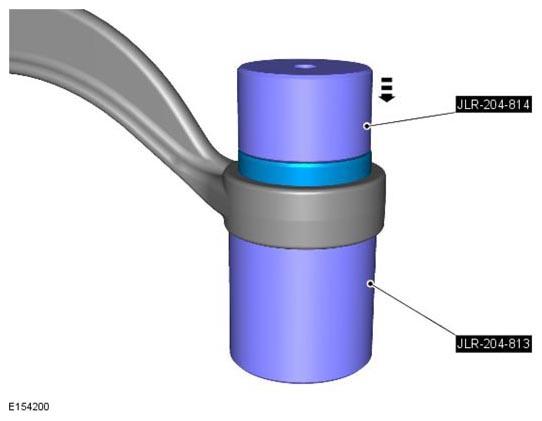

Using the special tools, remove the bush.

Special Tool(s): JLR-204-813, JLR-204-814

General Equipment: Hydraulic press
