Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect
Remove the fuel rail.
Refer to: Fuel Rail .
Remove the fuel injectors.
Refer to: Fuel Injectors .
Remove the upper timing chain.
Refer to: Upper Timing Chain .
NOTE: Remove and discard the bolt.

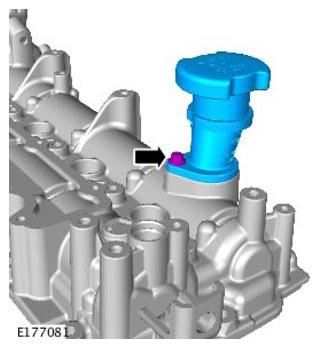

Remove the camshaft gear, then remove the special tool JLR-303-1625.

Special Tool(s): JLR-303-1625
Disconnect and position the harness to one side.
Remove the bracket.
Position the pipe to one side.
NOTE:
- Do not disassemble further if the component is removed for access only.
- Discard the gasket.

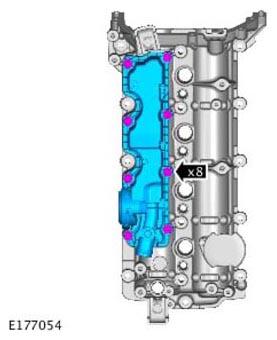

Remove the valve cover.
CAUTION:

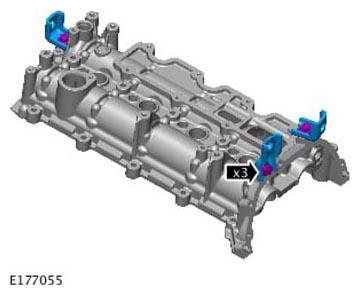

- Remove the camshaft bearing caps. Note: their position, orientation and markings. Each is marked with its position. I (inlet) E (exhaust) a number (1-5) and its orientation (arrow).
- Inspect the camshafts and install new ones if damaged or worn.
- Inspect the valve cover and camshaft bearing caps and install a new valve cover assemble if damaged or worn.
NOTE: Discard the gasket.
CAUTION: Discard the seal.
