Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

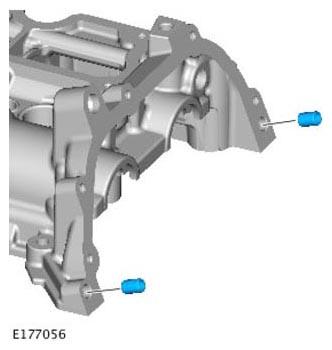

NOTE: If a new valve cover is installed, new locating dowels must be installed.
Torque Specification: 47 Nm

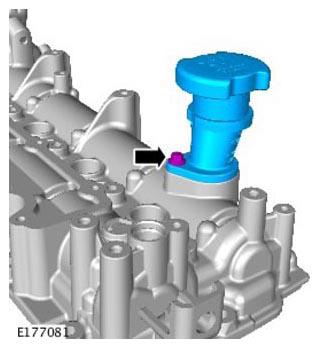

CAUTION: Install a new seal.

Torque Specification: 12 Nm

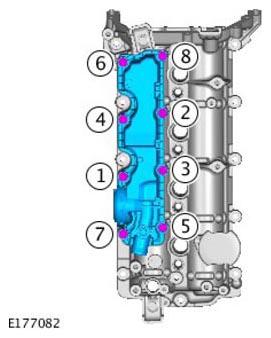

CAUTION: Install and finger tighten bolts before final tightening in sequence illustrated.

NOTE: Install a new gasket.

Torque Specification: 12 Nm
CAUTION: Install and finger tighten bolts before final tightening in sequence illustrated.

NOTE: Make sure that these components are installed to the noted removal position.

Lubricate the components with clean engine oil.

Torque Specification: 12 Nm
Align the camshafts and install the special tool JLR-303-1625.

Special Tool(s): JLR-303-1625
CAUTION: Install and finger tighten bolts before final tightening in sequence illustrated.

NOTE: Install a new gasket.

Torque Specification:

M8 x 80

Stage 1: 15 Nm

Stage 2: 42°

M8 x 40 25 Nm
Install the pipe.

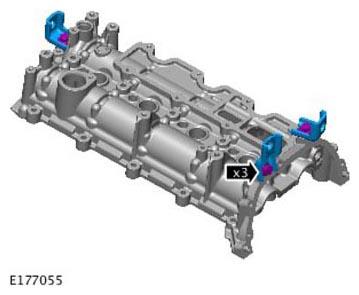

Install the bracket.

Torque Specification: 12 Nm
Install the harness.

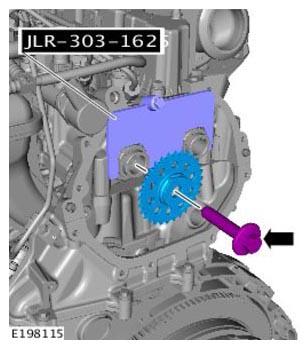

Install the camshaft gear.

Special Tool(s): JLR-303-1625

Torque Specification:

Stage 1: 10 Nm

Stage 2: Loosen: 90°

Stage 3: 80 Nm

Stage 4: 90°
Install the upper timing chain.
Refer to: Upper Timing Chain .
Install the fuel injectors.
Refer to: Fuel Injectors .
Install the fuel rail.
Refer to: Fuel Rail .
