Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. NOTE: Left shown, right similar.
    G11309126
  3. Refer to: Charge Air Cooler Intake Pipe .
  4. Support the engine with the lifting equipment.
    CAUTION: Support the engine on a jack. The angle may need to be adjusted during this procedure.

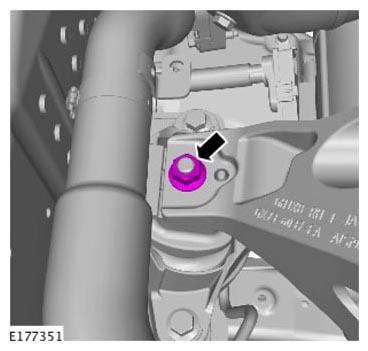

  5. G11309133

    Torque Specification: 60 Nm

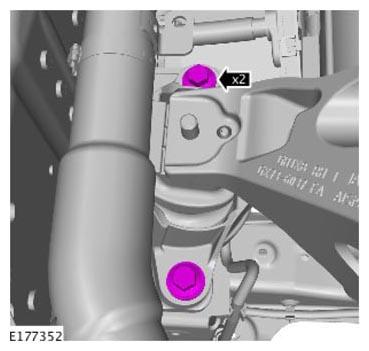

  6. G11309134

    Torque Specification: 47 Nm

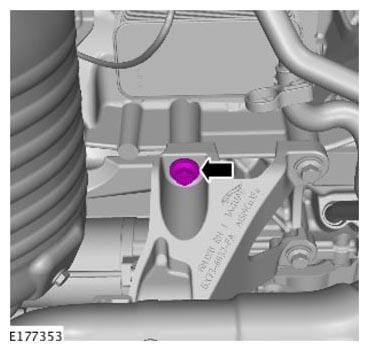

  7. G11309135

    Torque Specification: 60 Nm

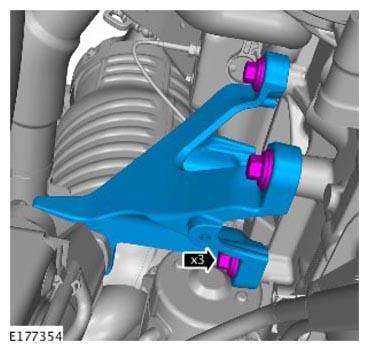

  8. G11309136

    Torque Specification: 60 Nm

  9. CAUTION: Note the fitted position of the component prior to removal.

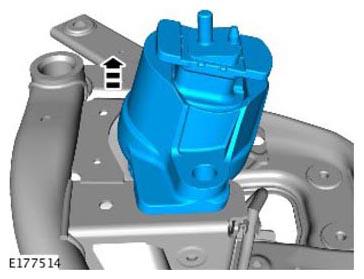

    G11309137
