Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some illustrations may show the engine removed for clarity.
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

Refer to: Battery Disconnect and Connect .
Raise and support the vehicle.
WARNING: Make sure to support the vehicle with axle stands.
Refer to: Oil Pan .

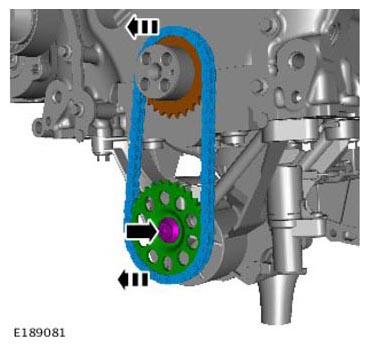

Engines fitted with tensioner
Remove and discard the centre bolt.
CAUTION: Using a suitable tool, hold the oil pump gear when removing the centre bolt.

NOTE: Make sure a new centre bolt is installed.

Renew Part: Oil pump gear bolt
1. Torque Specification:
  Stage 1 60 Nm

  Stage 2 90°
Remove and discard the chain tensioner assembly.

Renew Part: Timing chain tensioner

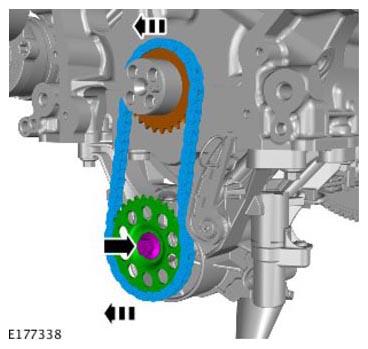

Engines fitted without tensioner
Remove and discard the centre bolt.
CAUTION: Using a suitable tool, hold the oil pump gear when removing the centre bolt.

NOTE: Make sure a new centre bolt is installed.
1. Torque Specification:
  Stage 1 60 Nm

  Stage 2 90°
