Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

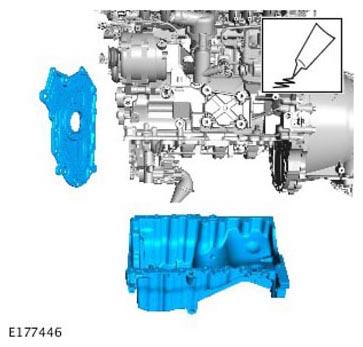

  1. NOTE:
    • Make sure that all traces of the old sealant are removed from the mating faces.
    • Apply silicone gasket sealant or equivalent meeting Land Rover specification.
    G11309114
  2. To install, reverse the removal procedure.
