Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

  2. Disconnect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .

  3. Remove the crankshaft rear oil seal.

    Refer to: Crankshaft Rear Seal .

  4. Release the coolant pipes.
    G11309021

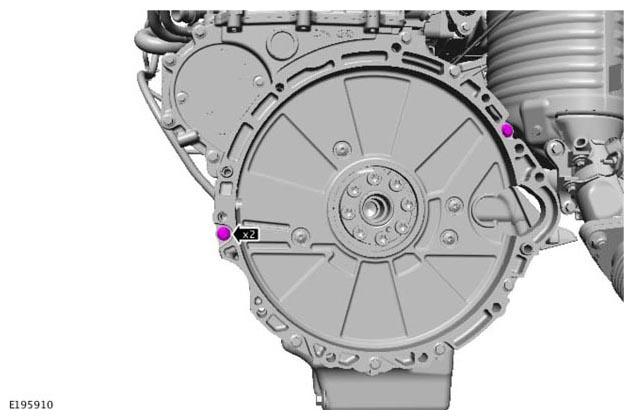

  5. Remove the 2 bolts.
    CAUTION: Note the installed position of the component(s) prior to removal.
    G11309022

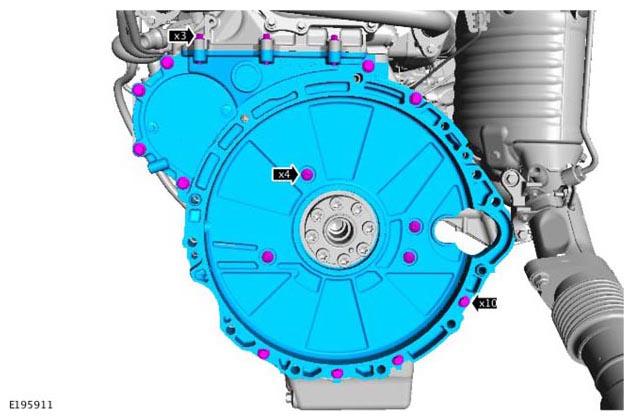

  6. Remove the 17 bolts.
    CAUTION:
    • Note the position of the bolts, prior to removal.
    • Be prepared to collect escaping oil.
    G11309023

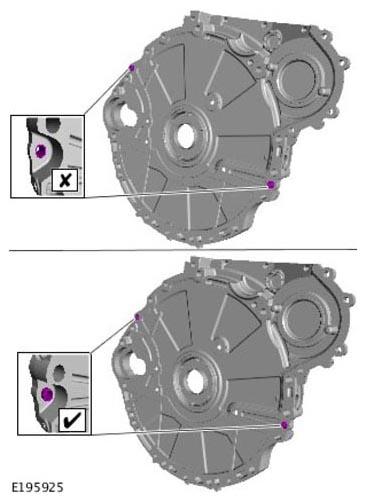

  7. Using a suitable tool, position the dowels as shown in the illustration.
    CAUTION: Take extra care not to damage the surrounding components.
    G11309024
