Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle.

    Refer to: Lifting .

  2. Remove the air deflector.

    Refer to: Air Deflector .

  3. Release the vacuum pipe and reposition away from the engine mount assembly.
    G11309126
  4. Lower the vehicle.
  5. Support the engine with the lifting equipment.
    CAUTION: Support the engine on a jack. The angle may need to be adjusted during this procedure.

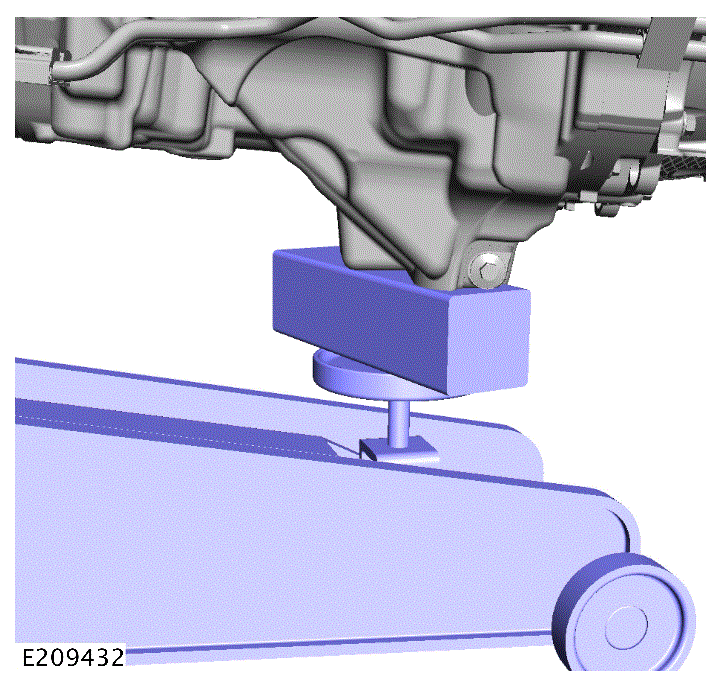

    G00568998

    General Equipment: Hydraulic floor jacks (2 tonnes minimum capacity)

  6. G11309127
    • Remove the engine mount nut.
    • Release the ground cable and reposition away from the engine mount.
  7. Remove the 2 engine mount retaining bolts.
    G11309128
  8. Remove the upper engine mount bracket bolt.
    G11309129
  9. Release the 3 remaining engine mount bracket bolts and remove the engine mount bracket.
    G11309130
  10. Remove the engine mount from the vehicle.
    NOTE: Note the fitted position of the component prior to removal.
