Removal And Installation: Notes

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

30.15.38

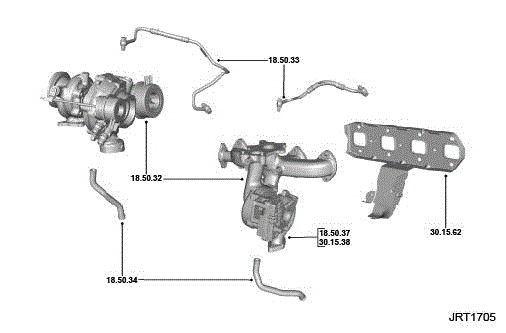

Exhaust Manifold - Engine Set - Renew

2000 cc, INGENIUM DIESEL, Single Turbocharger fitted, With Particulate Filter, with Diesel Exhaust Fluid

2.3

30.15.38

Exhaust Manifold - Engine Set - Renew

2000 cc, INGENIUM DIESEL, Single Turbocharger fitted, With Particulate Filter, without Diesel Exhaust Fluid

1.9

30.15.38

Exhaust Manifold - Engine Set - Renew

2000 cc, INGENIUM DIESEL, Single Turbocharger fitted, Without Particulate Filter

1.8

30.15.38

EXHAUST MANIFOLD - ENGINE SET - RENEW

2000 CC, INGENIUM DIESEL, TWIN TURBOCHARGER FITTED, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID

3.8

30.15.38

EXHAUST MANIFOLD - ENGINE SET - RENEW

2000 CC, INGENIUM DIESEL, TWIN TURBOCHARGER FITTED, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID

3.4

30.15.38

EXHAUST MANIFOLD - ENGINE SET - RENEW

2000 CC, INGENIUM DIESEL, TWIN TURBOCHARGER FITTED, WITHOUT PARTICULATE FILTER

3.2

SPECIAL TOOL(S)

	303-1444-01 Exhaust Manifold Installation Guide Pins - Threaded
	303-1444-02 Exhaust Manifold Installation Guide Pins - Unthreaded

PART(S)

STEP	PART NAME	QUANTITY
Step 1	Exhaust manifold gasket	1
Step 7	Exhaust gas recirculation gasket	1
