Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the engine removed for clarity.

Raise and support the vehicle.
WARNING: Make sure to support the vehicle with axle stands.
Remove the oil filter element.
Refer to: Oil Filter Element .
Remove the intake manifold.
Refer to: Intake Manifold .
Remove the exhaust manifold.
Refer to: Exhaust Manifold .
Remove the valve cover.
Refer to: Camshaft Carrier .
CAUTION: Care must be taken not to damage the component.

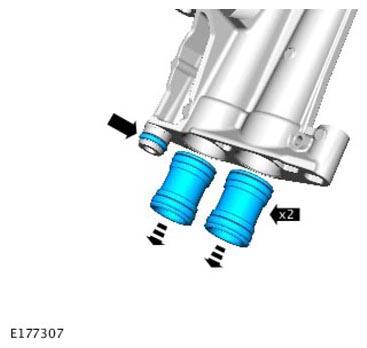

CAUTION: Remove and discard the O-ring seals.
CAUTION: Discard the component.
CAUTION:
- Make sure that the components are clean, dry and free from corrosion and foreign material.
- Check all timing components for wear and install new components if required.
NOTE: Mark each camshaft roller follower and lash adjuster. Make sure each component is returned to its original fitted position.
CAUTION: Discard the bolts.
CAUTION:
- Take extra care not to damage the edges of the component.
- Take extra care not to damage the surrounding components.
NOTE: Discard the gasket.
CAUTION: Make sure that the dowels and dowel holes are clean and free from debris and foreign material.

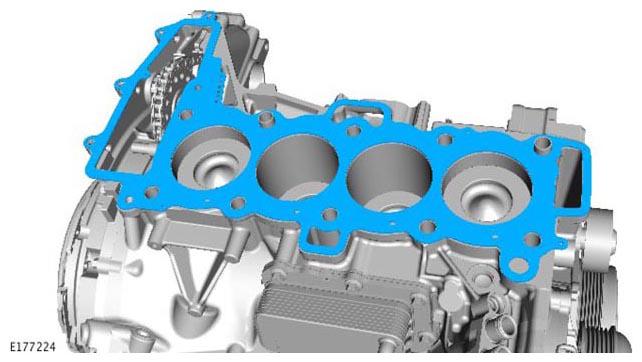

Clean and inspect the cylinder head and cylinder block.
CAUTION: Only use a plastic scraper to clean off the old gasket.
