Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Disconnect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

    Vehicles with automatic transmission

  3. Remove the flexplate.

    Refer to: Flexplate .

    Vehicles with manual transmission

  4. remove the flywheel.

    Refer to: Flywheel .

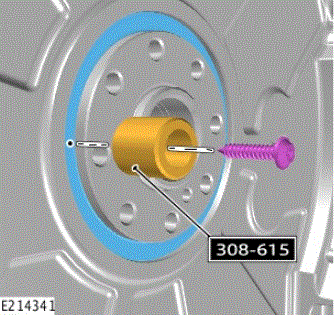

  5. Install the special tool to the crankshaft rear oil seal.
    G00565429

    Special Tool(s):  308-615

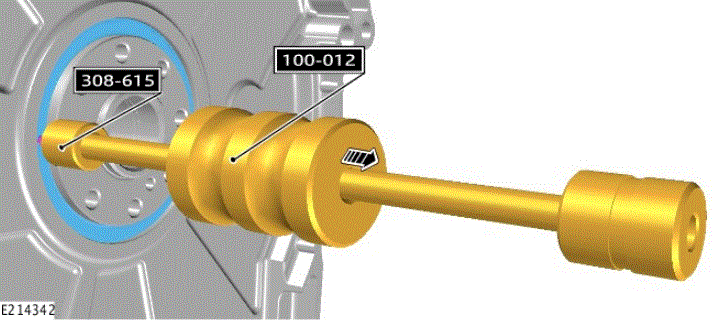

  6. Using the special tools, remove the crankshaft rear oil seal.
    G00565430

    Special Tool(s):  308-615, 100-012
