Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .

  2. Remove the fuel rail.

    Refer to: Fuel Rail .

  3. Remove the fuel injectors.

    Refer to: Fuel Injectors .

  4. Remove the upper timing chain. Refer to: Upper Timing Chain .
  5. Install the special tool.
    G11490721

    Special Tool(s):  JLR-303-1631

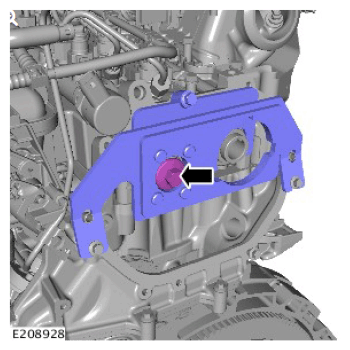

  6. G11490722
    • Loosen the camshaft gear bolt but do not remove at this stage.
    • Remove the special tool.

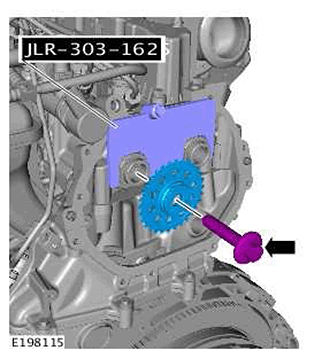

  7. Remove the camshaft gear and discard the bolt.
    G11440382

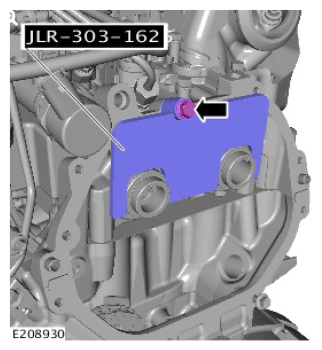

  8. Remove the special tool.
    G11490723

    Special Tool(s): JLR-303-1625

  9. Remove the Noise, Vibration and Harshness (NVH) material.
    G11309051
  10. Disconnect the 2 electrical connectors and position the harness to one side
    G11309030
  11. Remove the cylinder head temperature sensor electrical connector bracket.
    G11308980
  12. Position the crankcase breather to one side.
    G11309032
  13. Remove the valve cover and discard the gasket.
    G11309033
  14. NOTE: Note the orientation of the component prior to removal
    G11309034
    • Remove the camshaft bearing caps.
    • Remove the camshafts.
    • Inspect the components and renew if damaged or worn.
