Universal Serial Bus 3.0 Signal Booster

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
G11310974

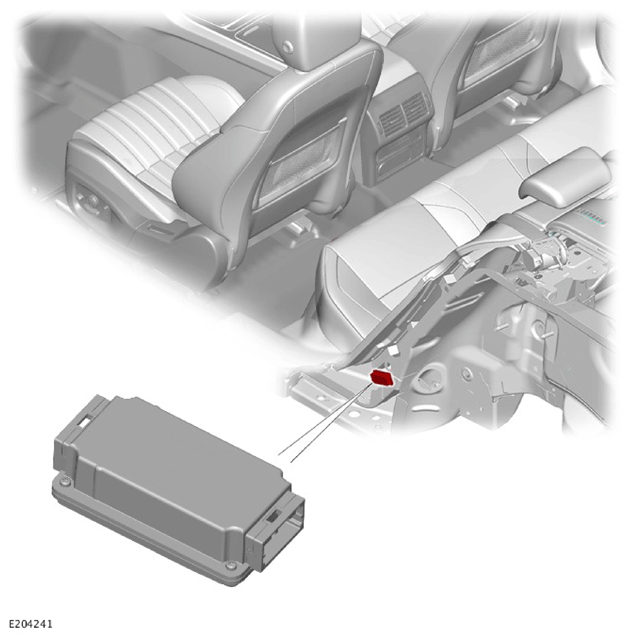

The Universal Serial Bus (USB) 3.0 signal booster is located on the left side of the rear seat cushion, behind the seat bolster trim.

The USB 3.0 signal booster is connected between the portable media interface panel and the Infotainment Master Controller (IMC). The USB 3.0 signal booster reduces the time required for data transmission, reduces power consumption and is backwards compatible with USB 2.0. The USB 3.0 signal booster boosts the signal to reduce degradation.

For additional information, refer to: Audio System .
