Universal Serial Bus 2.0 Hub - INCONTROL Touch Pro Systems Only
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

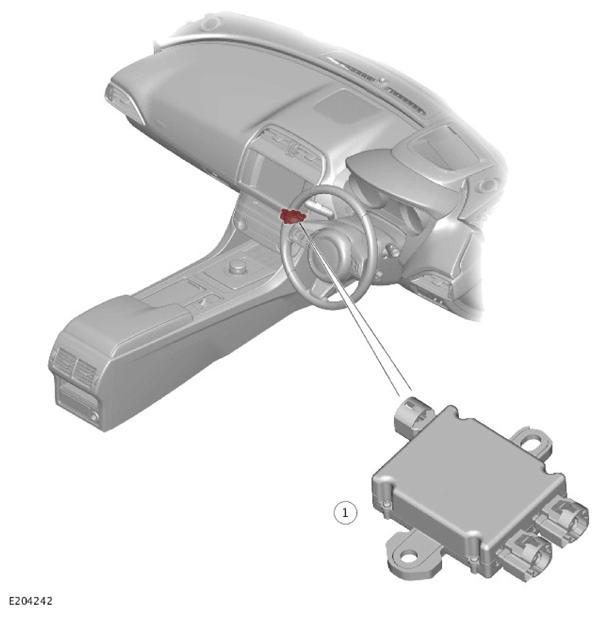

| ITEM | DESCRIPTION |
|---|---|
| 1 | Universal Serial Bus (USB) 2.0 hub |
The Universal Serial Bus (USB) 2.0 hub is located in the instrument panel, behind the Integrated Control Panel (ICP).
The USB 2.0 hub operates as a signal splitter between the Infotainment Master Controller (IMC), the digital disc player and the electronic toll collection module (Japan only). The USB 2.0 hub also functions as a signal booster for USB 2.0 signals between the connected components.
