Portable Media Interface Panel - Vehicles With INCONTROL Touch Pro Audio System

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

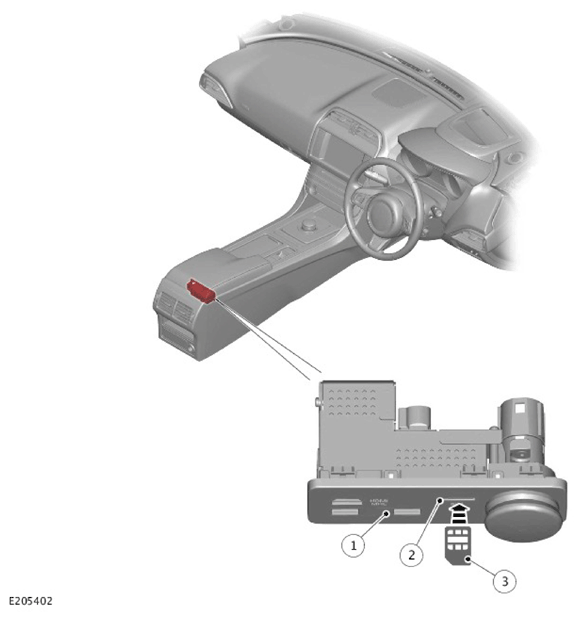

ITEM	DESCRIPTION
1	Portable media interface panel
2	Subscriber Identification Module (SIM) card reader
3	Micro Subscriber Identification Module (SIM) card

The portable media interface panel is located in the floor console stowage compartment.

The portable media interface panel incorporates a Subscriber Identification Module (SIM) card reader. The SIM card reader utilises a Micro SIM interface.

The Micro SIM card reader is connected directly to the Telematics Control Module (TCU) via the Universal Serial Bus (USB) connection. The Micro SIM card reader is used to establish the InControl Pro Services feature. The users Micro SIM card enables the system to register to a network of personal choice.

The Micro SIM card is placed in the portable media interface panel. If the SIM card is a different size, for example Nano SIM, an adaptor or replacement SIM card will be required.

To install a Micro SIM card, insert the Micro SIM card into the portable media interface panel slot.

NOTE: If the SIM card has been previously used in a mobile phone or other device and a Personal Identification Number (PIN) has been set, the PIN must be removed before use in the vehicle.

The Micro SIM card must be inserted with the contacts facing up and the shortest end facing outwards. The Micro SIM card should not be protruding once correctly inserted. Make sure the Micro SIM card is located correctly in the SIM card reader. Failure to do so may damage the Micro SIM card or the SIM card reader.

To remove the Micro SIM card, gently push in and release.
