Portable Media Interface Panel - INCONTROL Touch Pro Systems

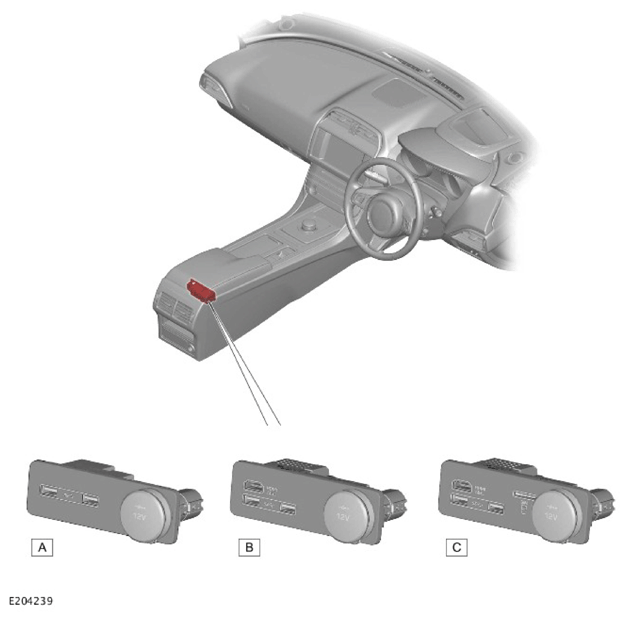

| ITEM | DESCRIPTION |
|---|---|
| A | Standard panel - Two Universal Serial Bus (USB) 3.0 sockets |
| B | InControl Apps panel - Two USB 3.0 sockets and one High-Definition Multimedia Interface (HDMI)/Mobile High-Definition Link (MHL) socket |
| C | InControl Apps Connect Pro panel - Two USB 3.0 sockets, one HDMI/MHL socket and Micro Subscriber Identification Module (SIM) card socket |
The portable media interface panel is located in the front floor console stowage compartment. The portable media interface panel differs from the portable audio interface panel used on the InControl Touch systems in that image data can be passed from a portable media device to the Infotainment Master Controller (IMC).
Three versions of the portable media interface panel are available dependent on vehicle specification.
The versions have combinations of:
- 12 V accessory socket
- Two Universal Serial Bus (USB) 3.0
- High-Definition Multimedia Interface (HDMI)/Mobile High-Definition Link (MHL)
- Micro Subscriber Identification Module (SIM) card reader.
The standard fitting portable media interface panel includes two USB 3.0 sockets (which also support USB 2.0) and are connected to the IMC through a USB 3.0 signal booster.
The portable media interface panel, fitted with the InControl Apps option, includes two Universal Serial Bus (USB) 3.0 sockets and a single High-Definition Multimedia Interface (HDMI)/Mobile High-Definition Link (MHL) port.
HDMI supports multiple devices for audio/video playback on the Touch Screen (TS). MHL provides charging for supported devices.
Data transfer from the HDMI/MHL port is direct to the IMC, using an APIX2 high speed digital serial link.
The portable media interface panel, fitted with the InControl Connect Pro option, includes two USB 3.0 sockets, a single HDMI/MHL socket and a Micro SIM card socket for data connectivity.
Data transfer from the Micro SIM card is direct to the IMC, using the Automotive Pixel Link 2 (APIX2) high speed digital serial link.
