Portable Audio Interface Panel - Vehicles With INCONTROL Touch Audio System

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Voice control software is stored on the Secure Digital (SD) memory card in addition to the software contained within the Audio Head Unit (AHU). Navigation and telephone system software is also stored on the SD memory card.

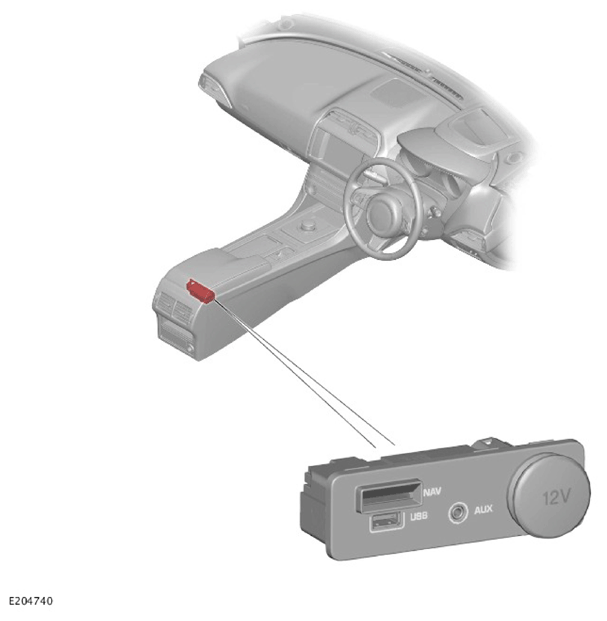

Vehicles with a Level C AHU have a portable audio interface panel which includes an SD memory card slot for navigation system, voice control and telephone software.

For additional information, refer to: Navigation System .

NOTE: The SD memory card must not be removed or the files modified. If the card is removed, the navigation, voice control and telephone will be inoperable. The SD memory card slot cannot be used for media files. Installation of any external content or modification of the files on the SD memory card can corrupt the SD memory card and cause voice control, telephone and navigation systems to be inoperable.

Do not remove the SD memory card when the ignition is switched on (power mode 6) or the engine is running (power mode 7). Removal will cause voice control, telephone and navigation systems to be inoperable. A message will appear in the Touch Screen (TS) prompting the user to insert the SD memory card. This will initialise a soft reset of the system and restore full functionality of voice control, telephone and navigation systems.

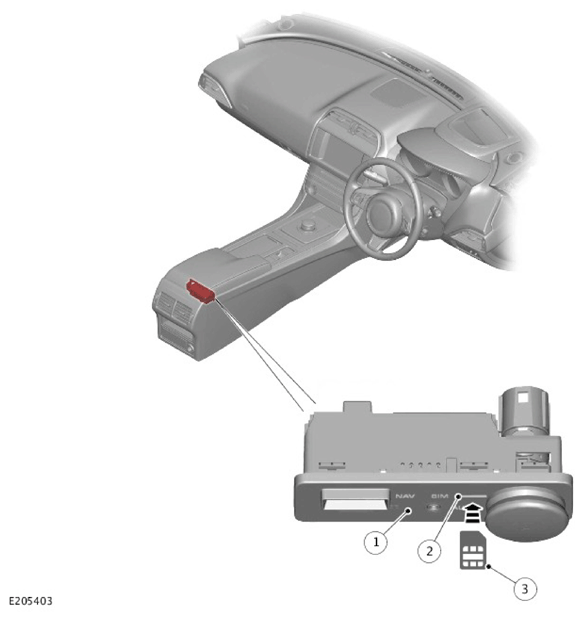

ITEM	DESCRIPTION
1	Portable audio interface panel
2	Subscriber Identification Module (SIM) card reader
3	Micro Subscriber Identification Module (SIM) card

The portable audio interface panel is located in the floor console stowage compartment.

If the vehicle is equipped with WiFi Hotspot feature, the portable audio interface panel incorporates a Subscriber Identification Module (SIM) card reader. The SIM card reader utilises a Micro SIM interface.

The Micro SIM card reader is connected directly to the Telematics Control Module (TCU) via the Universal Serial Bus (USB) connection. The Micro SIM card reader is used to establish the InControl Wi-Fi Hotspot feature. The data-enabled Micro SIM card allows the system to register to a cellular network. The user chooses the network provider by bringing their own Micro SIM card.

The Micro SIM card is placed in the portable audio interface panel. If the SIM card is a different size, for example Nano SIM, an adaptor or replacement SIM card will be required.

To install the Micro SIM card, insert the Micro SIM card into the portable audio interface panel slot.

NOTE: If the SIM card has been previously used in a mobile phone or other device and a Personal Identification Number (PIN) has been set, the PIN must be removed before use in the vehicle.

Insert the Micro SIM card with the contacts facing up and the shortest end inwards. The Micro SIM card should not be protruding once correctly inserted. Make sure that the Micro SIM card is located correctly in the SIM card reader. Failure to do so may damage the Micro SIM card or the SIM card reader.

To remove the Micro SIM card, gently push in and release.
