Global Positioning System Signal Splitter

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

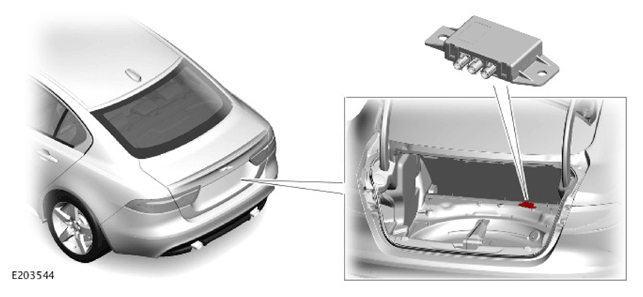

The Global Positioning System (GPS) signal splitter is located in the rear right side of the luggage compartment.

The GPS signal splitter shares the Global Navigation Satellite System (GNSS) signals from the roof pod antenna with the following:

The Telematics Control Module (TCU)
The Audio Head Unit (AHU) on vehicles with InControl Touch audio system
The Infotainment Master Controller (IMC) on vehicles with InControl Touch Pro audio system.

The Global Positioning System (GPS) signal splitter is located in the luggage compartment behind the right side rear seat. Two studs attached to the floorpan center reinforcing panel provide for attachment of the GPS signal splitter which is secured with two nuts.

On vehicles with InControl Touch systems the GPS signal splitter is only fitted to vehicles with the navigation and telematics system.

On vehicles with InControl Touch Pro systems the GPS signal splitter is fitted to all vehicles.

The GPS signal splitter shares the Global Navigation Satellite System (GNSS) signal from the roof pod GPS antenna with the following:

The Telematics Control Module (TCU).
The Audio Head Unit (AHU) on vehicles with InControl Touch audio system.
The Infotainment Master Controller (IMC) on vehicles with InControl Touch Pro audio system.
