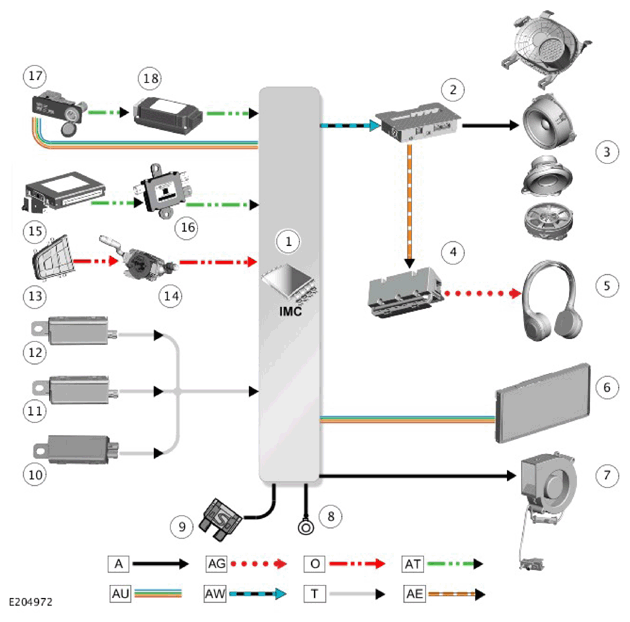

Control Diagram: Overview
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AG = INFRA-RED: O = LOCAL INTERCONNECT NETWORK (LIN) BUS: AT = UNIVERSAL SERIAL BUS (USB): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AW = BROADR-REACH® ETHERNET: T = CO-AXIAL: AE = LOW-VOLTAGE DIFFERENTIAL SIGNALLING (LVDS).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Audio Amplifier Module (AAM) |
| 3 | Vehicle speakers |
| 4 | Headphone transmitter |
| 5 | Wireless headphone |
| 6 | Touch Screen (TS) |
| 7 | Infotainment Master Controller (IMC) cooling fan |
| 8 | Ground |
| 9 | Power supply |
| 10 | Dual Television (TV) antenna amplifier |
| 11 | Television (TV)/Digital radio antenna amplifier |
| 12 | Television (TV) antenna amplifier |
| 13 | Left steering wheel switchpack |
| 14 | Steering Wheel Module (SWM) |
| 15 | Digital disc player |
| 16 | Universal Serial Bus (USB) 2.0 hub |
| 17 | Portable media interface panel |
| 18 | Universal Serial Bus (USB) 3.0 signal booster |
