Control Diagram - Vehicles With INCONTROL Touch Pro Audio Systems
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

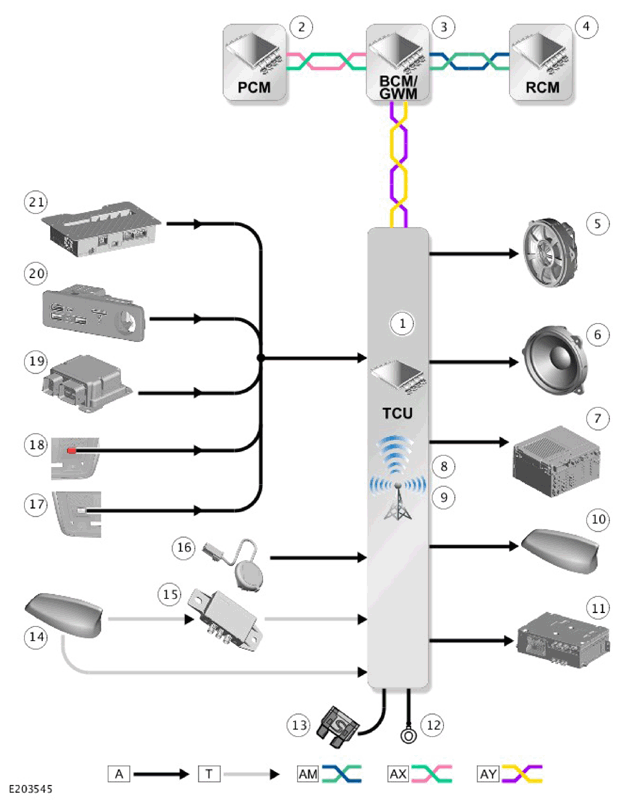

A = HARDWIRED: T = CO-AXIAL: AT = UNIVERSAL SERIAL BUS (USB): AW = BROADR-REACH® ETHERNET: AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AX = FLEXRAY SYSTEMS BUS: AY = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWER MODE ZERO SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Telematics Control Module (TCU) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Restraints Control Module (RCM) |
| 5 | Telematics speaker |
| 6 | Co-axial speaker - Vehicles with InControl Touch Pro with surround sound 17 speaker audio system |
| 7 | Microphone signal |
| 8 | Infotainment Master Controller (IMC) |
| 9 | WiFi signal - TCU internal antenna |
| 10 | Global System for Mobile communications (GSM) back-up signal - TCU internal antenna |
| 11 | Roof pod - WiFi signal |
| 12 | Ground |
| 13 | Power supply |
| 14 | Roof pod |
| 15 | Global Positioning System (GPS) signal splitter |
| 16 | Audio Amplifier Module (AAM) |
| 17 | Portable media interface panel |
| 18 | Microphone |
| 19 | Breakdown call (bCall) switch |
| 20 | Emergency call (eCall) switch |
| 21 | Restraints Control Module (RCM) - Crash signal |
