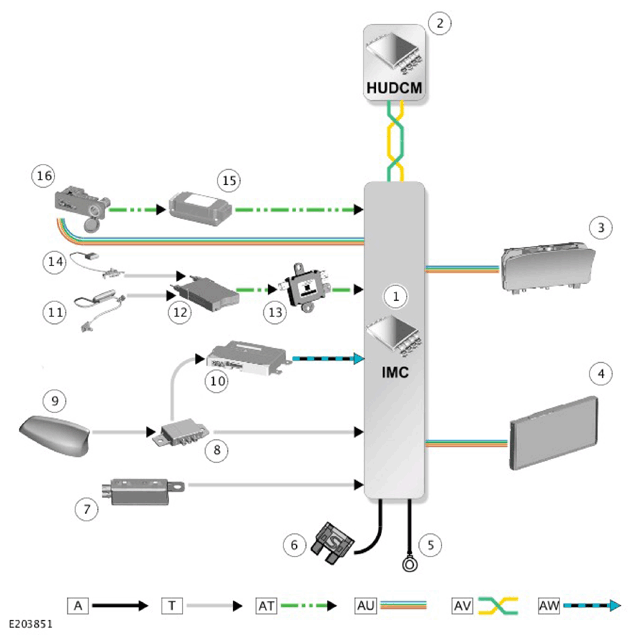

Control Diagram - INCONTROL Touch Pro Navigation System
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: T = CO-AXIAL: AT = UNIVERSAL SERIAL BUS (USB): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AW = BROADR-REACH® ETHERNET.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Head-Up Display Control Module (HUDCM) |
| 3 | Virtual display Instrument Cluster (IC) |
| 4 | Touch Screen (TS) |
| 5 | Ground |
| 6 | Power supply |
| 7 | Frequency Modulation 2 (FM2)/Vehicle Information and Communication System (VICS) antenna amplifier - Japan only |
| 8 | Roof pod - Global Positioning System (GPS) antenna |
| 9 | Global Positioning System (GPS) signal splitter - If equipped |
| 10 | Telematics Control Module (TCU) - If equipped |
| 11 | Vehicle Information and Communication System (VICS) beacon antenna - Japan only |
| 12 | Electronic toll collection module - Japan only |
| 13 | Universal Serial Bus (USB) 2.0 hub |
| 14 | Electronic toll collection module antenna - Japan only |
| 15 | Universal Serial Bus (USB) 3.0 signal booster |
| 16 | Portable media interface panel |
