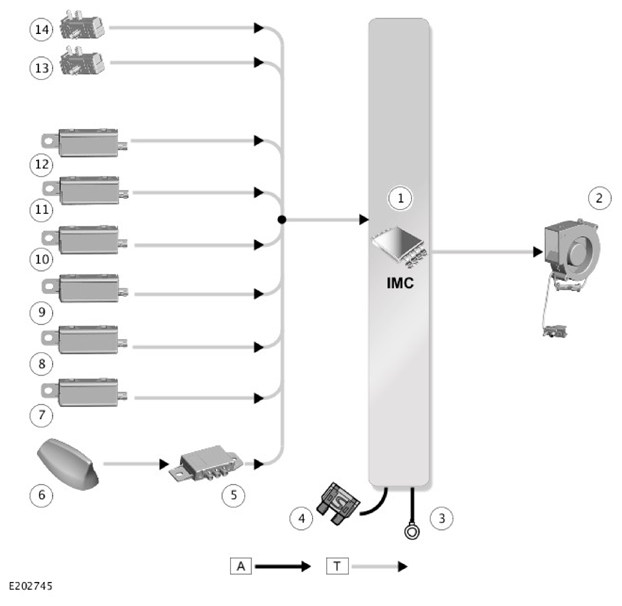

Control Diagram - INCONTROL Touch Pro 11 Speaker And INCONTROL Touch Pro With Surround Sound 17 Speaker Systems - 2 Of 2
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Infotainment Master Controller (IMC) cooling fan |
| 3 | Ground |
| 4 | Power supply |
| 5 | Global Positioning System (GPS) signal splitter |
| 6 | Roof pod - Global Positioning System (GPS) antenna/Global System for Mobile Communications (GSM) antenna/Satellite Digital Audio Radio Service (SDARS) antenna (North American Specification (NAS) only) |
| 7 | Digital radio (Band-3) antenna amplifier |
| 8 | Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier |
| 9 | Television (TV) antenna amplifier |
| 10 | Television (TV) antenna amplifier |
| 11 | Television (TV) antenna amplifier |
| 12 | Frequency Modulation (FM)2/Digital radio (Band-3)/Vehicle Information and Communication System (VICS) (Japan only) antenna amplifier |
| 13 | Right WiFi antenna |
| 14 | Left Bluetooth®/WiFi antenna |
