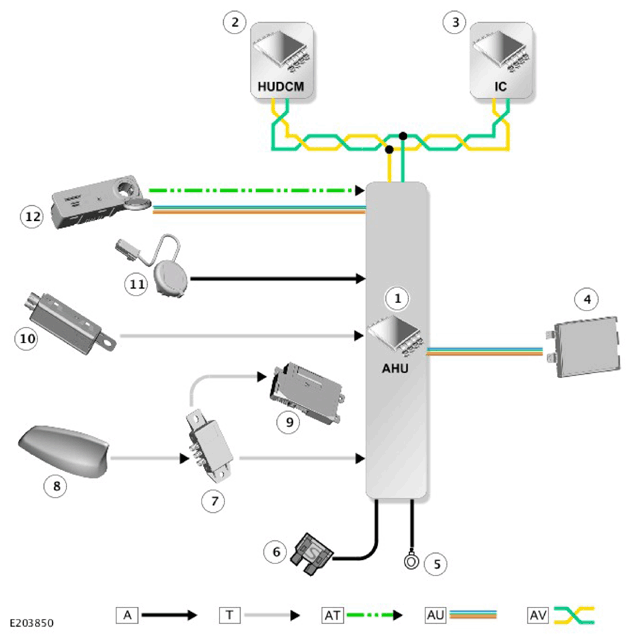

Control Diagram - INCONTROL Touch Navigation System
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: T = CO-AXIAL: AT = UNIVERSAL SERIAL BUS (USB): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Audio Head Unit (AHU) |
| 2 | Head-Up Display Control Module (HUDCM) |
| 3 | Instrument Cluster (IC) |
| 4 | Touch Screen (TS) |
| 5 | Ground |
| 6 | Power supply |
| 7 | Global Positioning System (GPS) signal splitter - If equipped |
| 8 | Roof pod - Global Positioning System (GPS) antenna |
| 9 | Telematics Control Module (TCU) - If equipped |
| 10 | Frequency Modulation 2 (FM2)/Digital radio antenna amplifier - Traffic Message Channel (TMC) reception |
| 11 | Microphone |
| 12 | Portable audio interface panel |
