Control Diagram - INCONTROL Touch 6 Speaker System
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

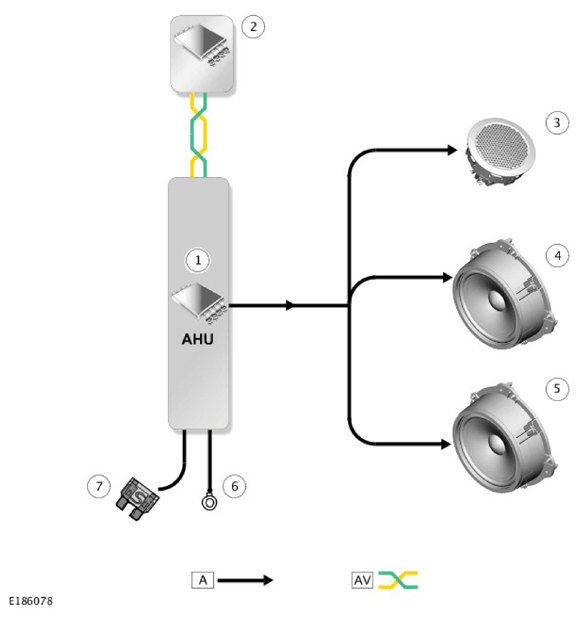

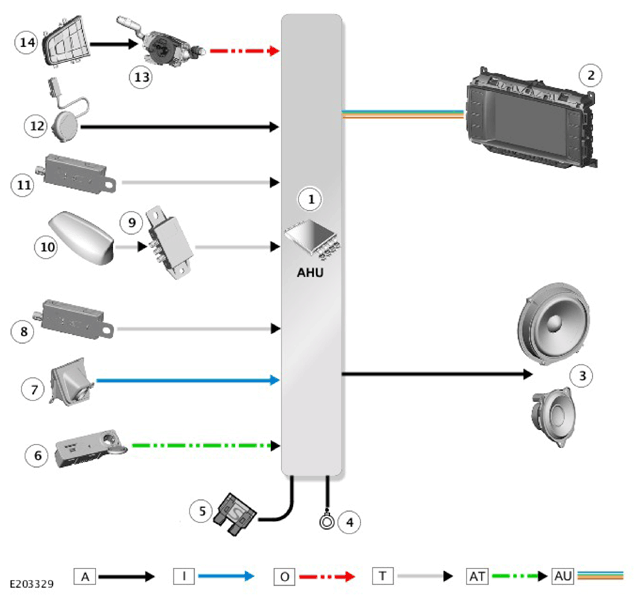

A = HARDWIRED: I = COMPOSITE VIDEO BASEBAND SIGNAL (CVBS): O = LOCAL INTERCONNECT NETWORK (LIN) BUS: T = COAXIAL: AT = UNIVERSAL SERIAL BUS (USB): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Audio Head Unit (AHU) |
| 2 | Touch Screen (TS) |
| 3 | Vehicle speakers (6 off) |
| 4 | Ground |
| 5 | Power supply |
| 6 | Portable audio interface panel |
| 7 | Rear View Camera (RVC) - If equipped |
| 8 | Frequency Modulation (FM)/Digital radio (Band-3) antenna amplifier |
| 9 | Global Positioning System (GPS) signal splitter - If equipped |
| 10 | Roof pod |
| 11 | Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier |
| 12 | Microphone |
| 13 | Steering Wheel Module (SWM) |
| 14 | Left steering wheel switchpack |
