Control Diagram - INCONTROL Touch 11 Speaker System
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: I = COMPOSITE VIDEO BASEBAND SIGNAL (CVBS): O = LOCAL INTERCONNECT NETWORK (LIN) BUS: T = COAXIAL: AL = PULSE WIDTH MODULATION (PWM): AS = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) INFOTAINMENT SYSTEMS BUS: AT = UNIVERSAL SERIAL BUS (USB): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AX = FLEXRAY.

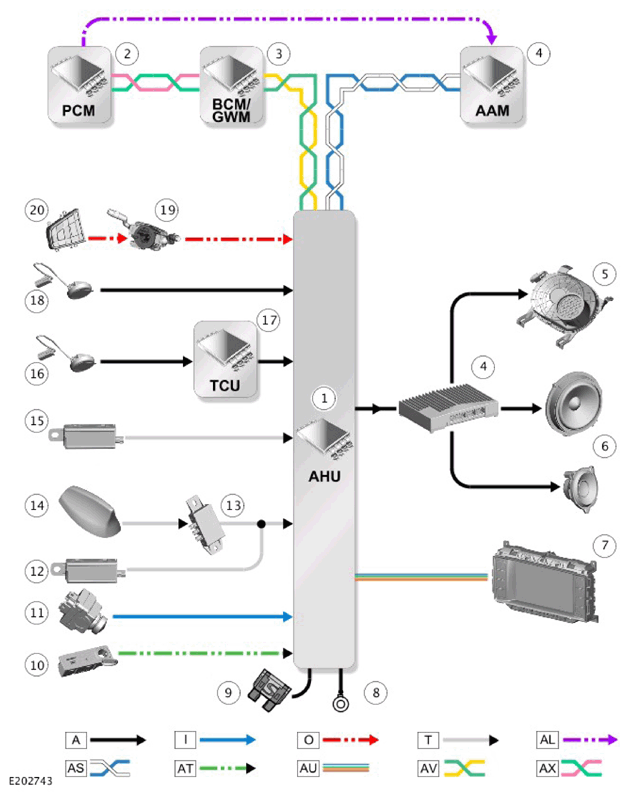

| ITEM | DESCRIPTION |
|---|---|
| 1 | Audio Head Unit (AHU) |
| 2 | Powertrain Control Module (PCM) - Engine speed signal - Only on vehicles with active sound design |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly - Engine torque, power mode and JaguarDrive mode signals |
| 4 | Audio Amplifier Module (AAM) |
| 5 | Sub-woofer speaker |
| 6 | Vehicle speakers (10 off) |
| 7 | Touch Screen (TS) |
| 8 | Ground |
| 9 | Power supply |
| 10 | Portable audio interface panel |
| 11 | Rear View Camera (RVC) - If equipped |
| 12 | Frequency Modulation (FM)/Digital radio (Band-3) antenna amplifier |
| 13 | Global Positioning System (GPS) signal splitter - If equipped |
| 14 | Roof pod |
| 15 | Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier |
| 16 | Microphone - Vehicles with telematics system |
| 17 | Telematics Control Module (TCU) - If equipped |
| 18 | Microphone - Vehicles without telematics system |
| 19 | Steering Wheel Module (SWM) |
| 20 | Left steering wheel switchpack |
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AS = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) INFOTAINMENT SYSTEMS BUS: AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AX = FLEXRAY SYSTEMS BUS.

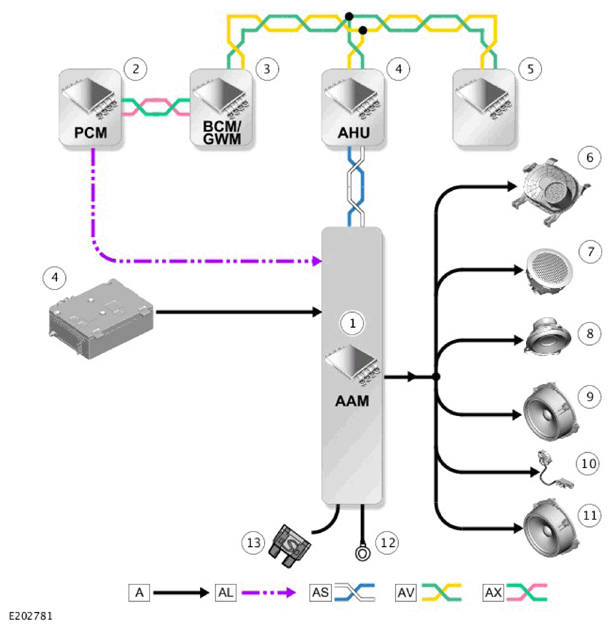

| ITEM | DESCRIPTION |
|---|---|
| 1 | Audio Amplifier Module (AAM) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Audio Head Unit (AHU) |
| 5 | Audio inputs from other vehicle systems |
| 6 | Sub-woofer speaker |
| 7 | Front tweeter speaker (2 off) |
| 8 | Front mid-range speaker (2 off) |
| 9 | Front bass speaker (2 off) |
| 10 | Rear tweeter speaker (2 off) |
| 11 | Rear bass speaker (2 off) |
| 12 | Ground |
| 13 | Power supply |
