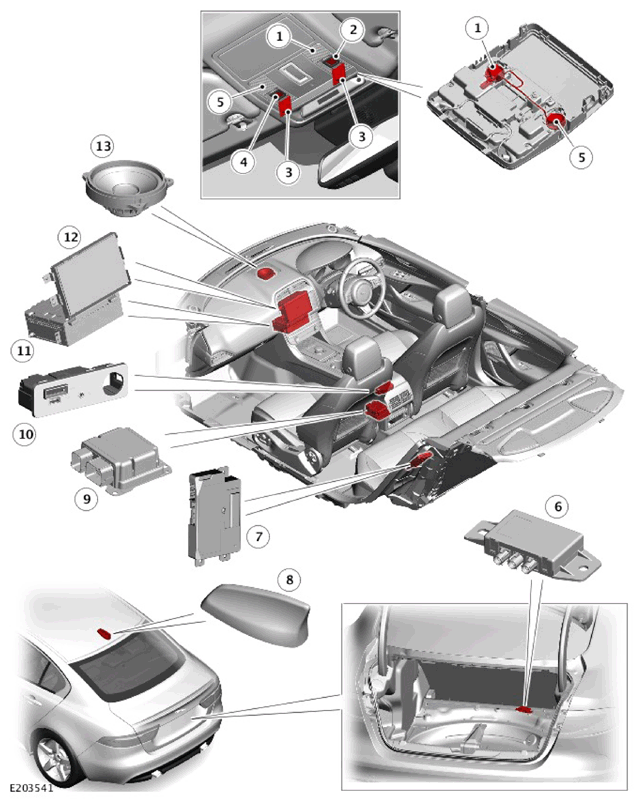

Component Location - Vehicles With INCONTROL Touch Audio Systems
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Microphone - Right Hand Drive (RHD) vehicles |
| 2 | Emergency call (eCall) switch |
| 3 | Cover |
| 4 | Breakdown call (bCall) switch |
| 5 | Microphone - Left Hand Drive (LHD) vehicles |
| 6 | Global Positioning System (GPS) signal splitter |
| 7 | Telematics Control Module (TCU) |
| 8 | Roof pod |
| 9 | Restraints Control Module (RCM) |
| 10 | Portable audio interface panel |
| 11 | Audio Head Unit (AHU) |
| 12 | Touch Screen (TS) |
| 13 | Telematics speaker |
