Component Location - INCONTROL Touch 11 Speaker System
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
Roof pod |
| 2 |
Audio Amplifier Module (AAM) |
| 3 |
Sub-woofer speaker |
| 4 |
Audio Head Unit (AHU) |
| 5 |
Touch Screen (TS) |
| 6 |
Telematics speaker - If equipped |
| 7 |
Front right tweeter speaker |
| 8 |
Front right mid-range speaker |
| 9 |
Front right bass speaker |
| 10 |
Frequency Modulation 2 (FM2)/Digital radio (Band-3) antenna amplifier |
| 11 |
Radio Frequency (RF) filter - Heated rear window positive (+) |
| 12 |
Rear right tweeter speaker |
| 13 |
Rear right bass speaker |
| 14 |
Radio Frequency (RF) filter - Heated rear window negative (-) |
| 15 |
Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier |
| 16 |
Portable audio interface panel |
| 17 |
Rear left bass speaker |
| 18 |
Rear left tweeter speaker |
| 19 |
Front left bass speaker |
| 20 |
Front left mid-range speaker |
| 21 |
Front left tweeter speaker |

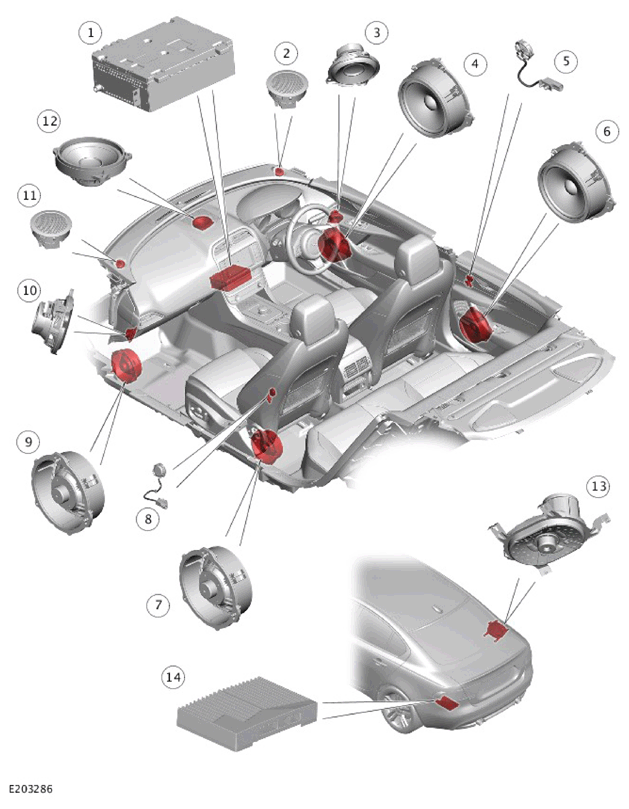

| ITEM |
DESCRIPTION |
| 1 |
Audio Head Unit (AHU) |
| 2 |
Front right tweeter speaker |
| 3 |
Front right mid-range speaker |
| 4 |
Front right bass speaker |
| 5 |
Rear right tweeter speaker |
| 6 |
Rear right bass speaker |
| 7 |
Rear left bass speaker |
| 8 |
Rear left tweeter speaker |
| 9 |
Front left bass speaker |
| 10 |
Front left mid-range speaker |
| 11 |
Front left tweeter speaker |
| 12 |
Telematics speaker - If equipped |
| 13 |
Sub-woofer speaker |
| 14 |
Audio Amplifier Module (AAM) |
