Component Location - 1 Of 2 - Video System

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

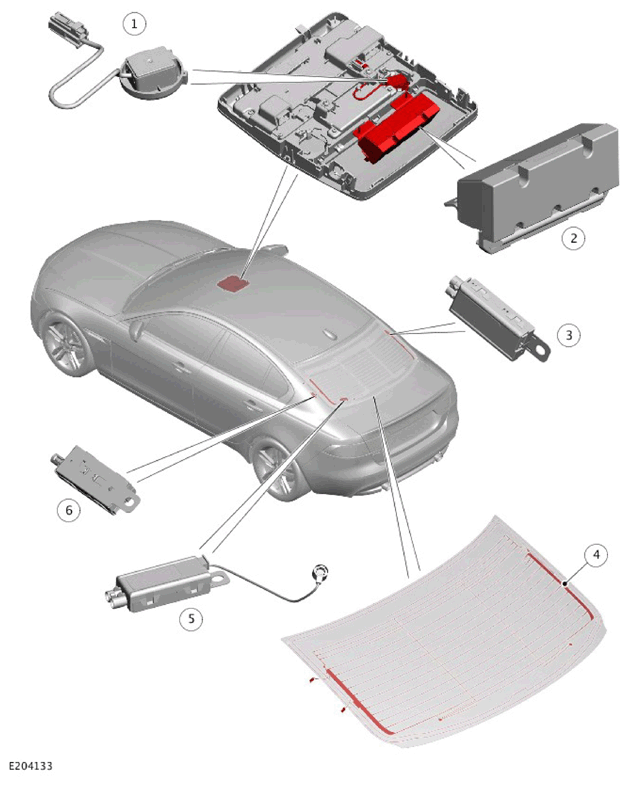

G11311009
ITEM DESCRIPTION
1 Microphone
2 Headphone transmitter
3 Dual Television (TV) antenna amplifier
4 Rear window antennas
5 Television (TV)/Digital radio antenna amplifier
6 Television (TV) antenna amplifier
