Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

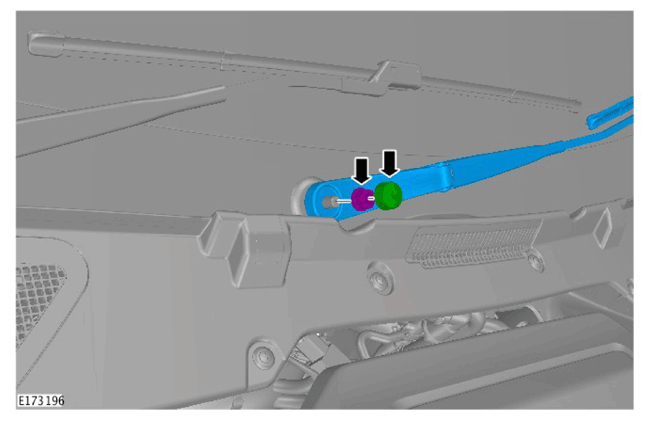

  1. Remove the windshield wiper arms.
    CAUTION: Always protect paint work and glass when removing exterior components.
    G11312305

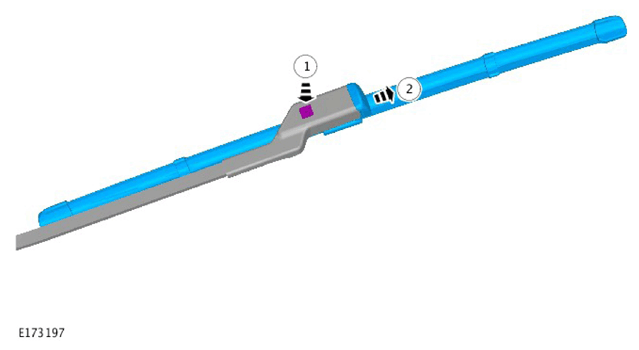

  2. Remove the wiper blades.
    NOTE: Do not disassemble further if the component is removed for access only.
    G11312306
