Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper blades.
    CAUTION: Always protect paint work and glass when removing exterior components.
  2. Install the windshield wiper arms.

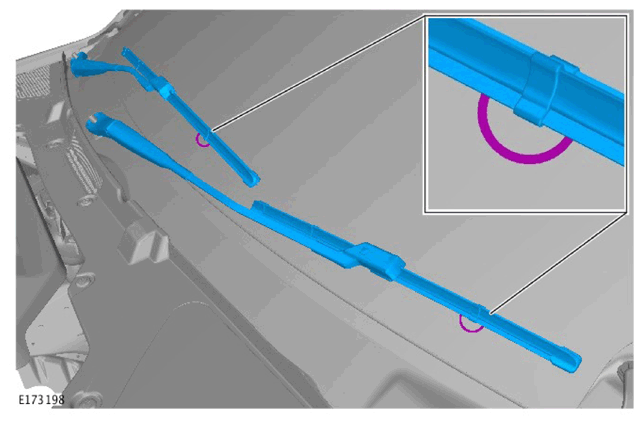

    CAUTION: Align the wiper blades onto the center of the windshield circle mark.
    G11312307
  3. NOTE: After the wiper pivot arm nuts have been tightened to the correct torque value, lift the wiper pivot arm from the windshield and return to the windshield. Make sure that wiper blades are not positioned below any point of the windshield circle mark.
    G11312305
    • Torque Specification: 30 Nm
