Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Secondary Bulkhead Panel RH - V6 S/C 3.0L Petrol .
  2. Refer to: Secondary Bulkhead Panel RH - INGENIUM I4 2.0L Diesel .
  3. Refer to: Secondary Bulkhead Left Panel - Ingenium I4 2.0L Petrol .

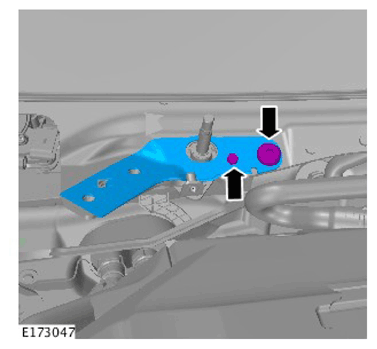

  4. G11312300

    Torque Specification:

    M8 12 Nm

    M12 55 Nm

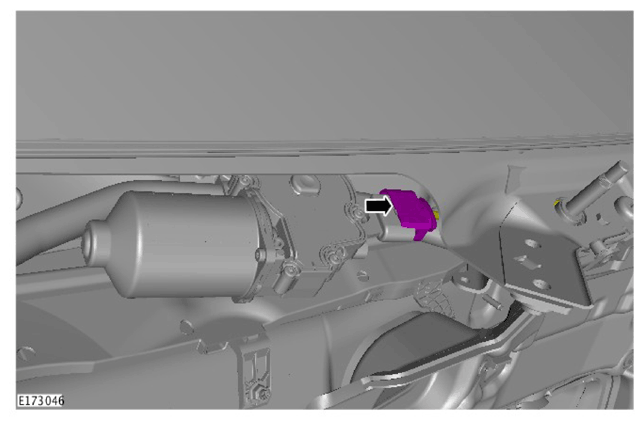

  5. G11312301

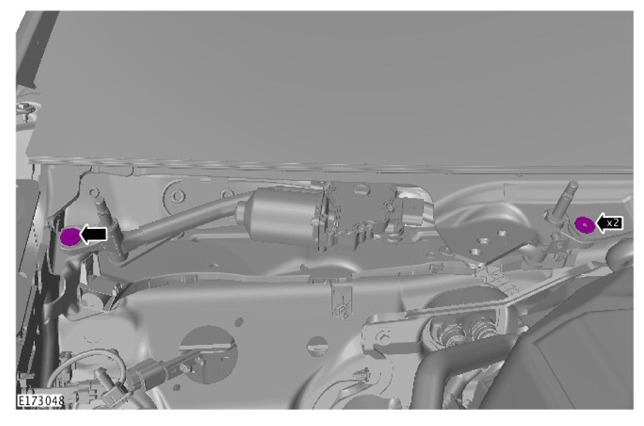

  6. G11312302

    Torque Specification: 12 Nm

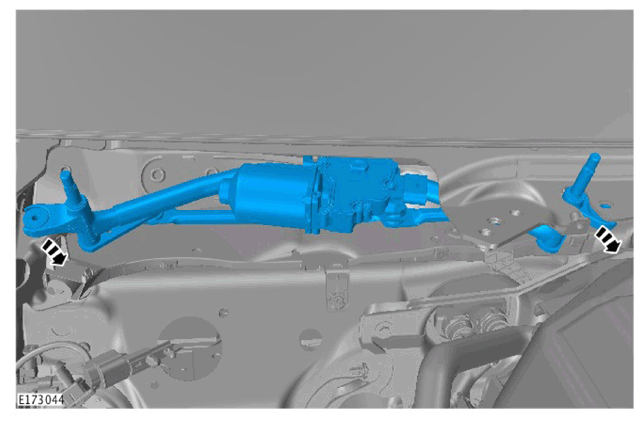

  7. G11312303
