Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Fender Splash Shield .

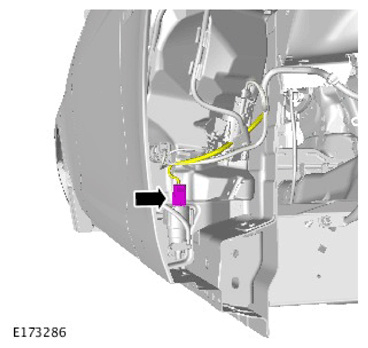

  3. G11312309
  4. CAUTION: Be prepared to collect escaping fluids.

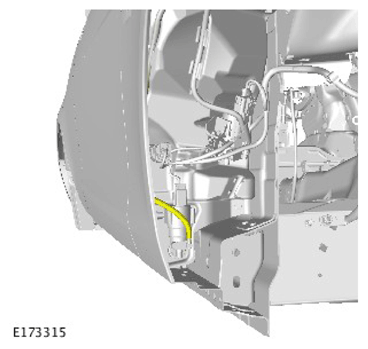

    G11312310
  5. CAUTION: Take extra care not to damage the seal.

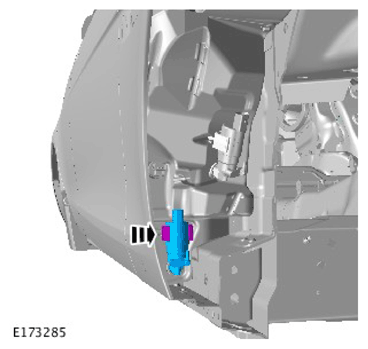

    G11312311
