Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.

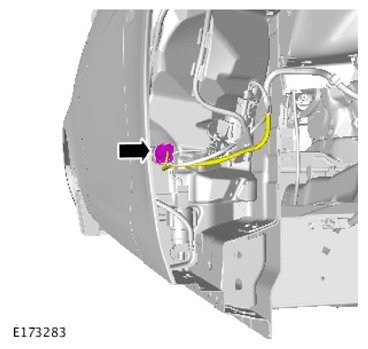

  2. G11312312
  3. CAUTION:
    • Be prepared to collect escaping fluids.
    • Take extra care not to damage the seal.
    • The seal is to be reused unless damaged.

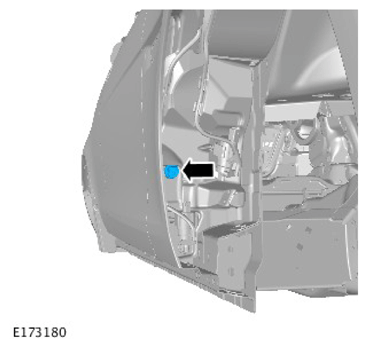

    G11312313
    • Position a container to collect the fluid.
  4. Refer to: Fender Splash Shield .
